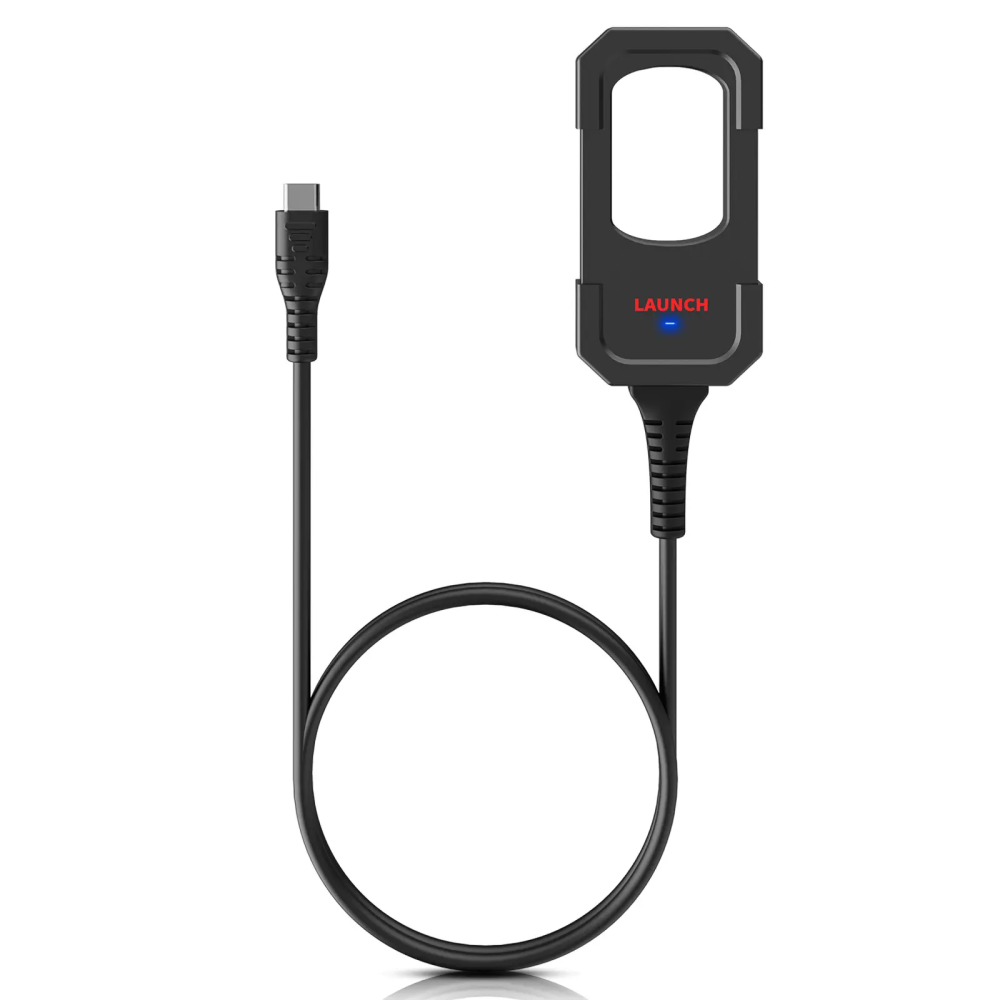

Launch X431 Key Programmer Remote Maker
Launch X431 Remote Maker is able to identify car key chips and generate various types of chip models from super remotes, read the remote control frequency of car keys, and generate remote control devices for different car models from various types of super remotes.
Function:
Read Transponder
Generate Transponder
Detect Frequency
Detect Ignition switch coil signal
Generate Remote (Launch X431 remote)
Set type of super chip
Set type of wireless remote
Unlock for Toyota smart key
etc

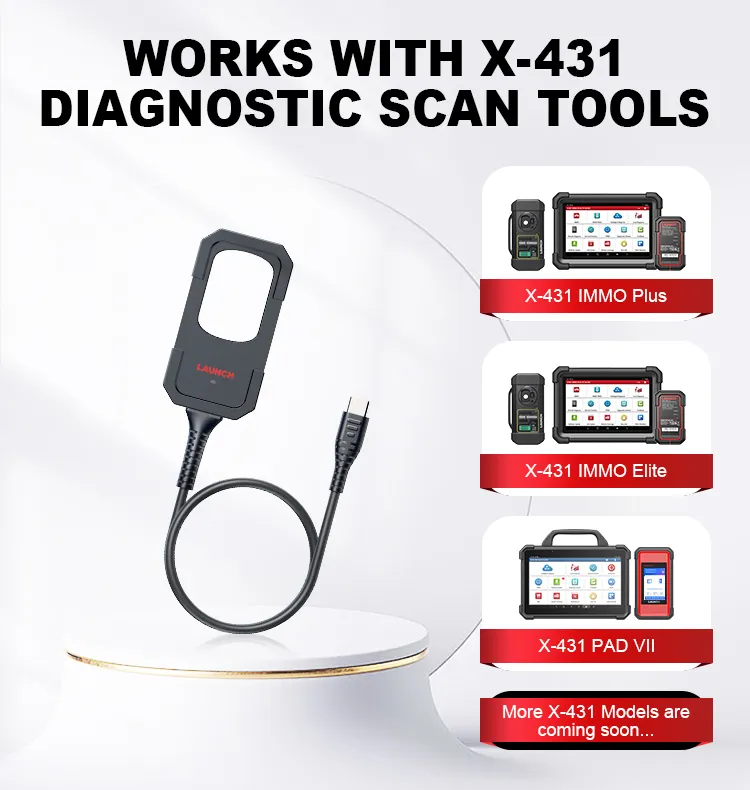

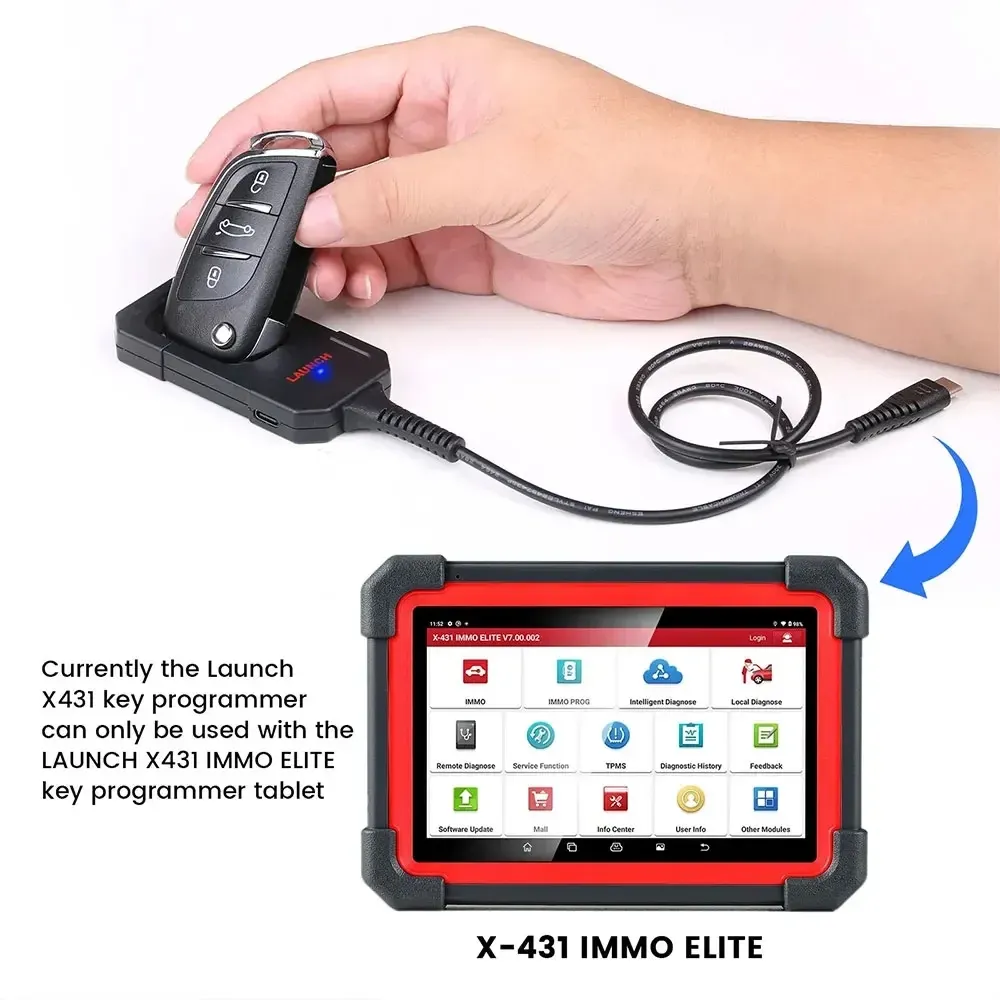

Currently the Launch X431 key programmer can only be used with the LAUNCH X431 IMMO ELITE key programmer tablet, the LAUNCH X431 IMMO PLUS key programmer tablet, LAUNCH X431 PAD Ⅶ and LAUNCH X431 PAD Ⅴ.
Introduction to the functions of super chips: Support the conversion of most car model chip types, and support separate matching to achieve vehicle startup. Support chips of the 8A, 8C, 8E, 4C, 4D, 4E, 48, 7935, 7936, 7938, 7939, 11/12/13 types.
Usage Scenario:
How to Use Launch Super Chip:
1. Enter the menu [Set type of super chip] to generate.
2. Select the corresponding key chip type and insert the super chip into the anti-theft induction coil.
3. Once successfully generated, it can be used.

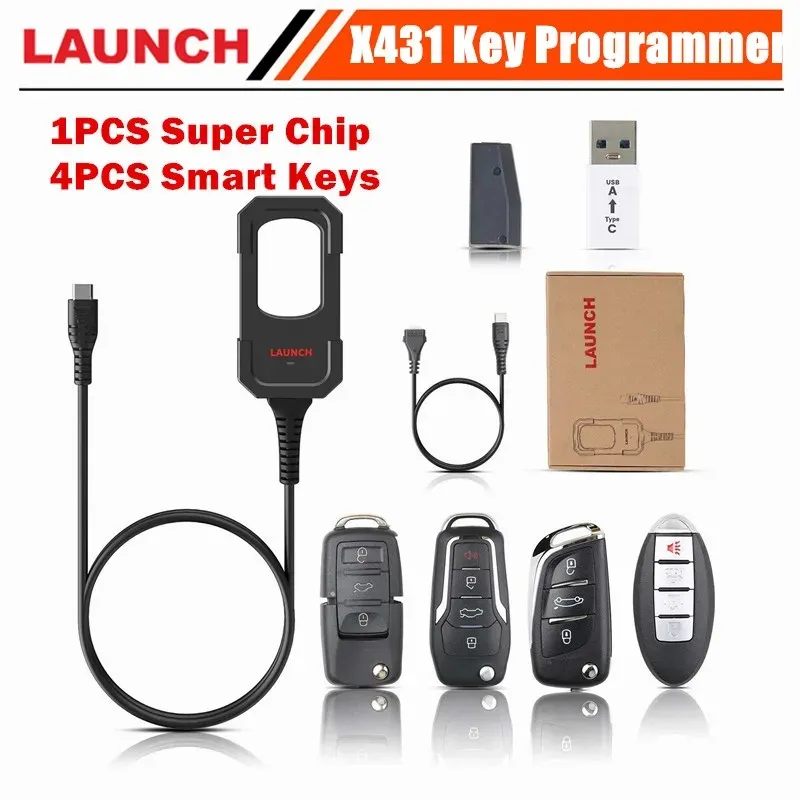

The Launch key programmer supports 4kinds universal remotes:
-
LS for Nissan (smart card, 4 buttons) -01,
-
LN for Peugeot DS (folding 3 buttons) -01,
-
LE for Volkswagen super remote (folding 3 buttons) -01,
-
LE for Ford super remote (folding 4 buttons) -01
Key programmer: Identify car key chips and generate various types of chip models from super remotes, read the remote control frequency of car keys, and generate remote control devices for different car models from various types of super remotes.

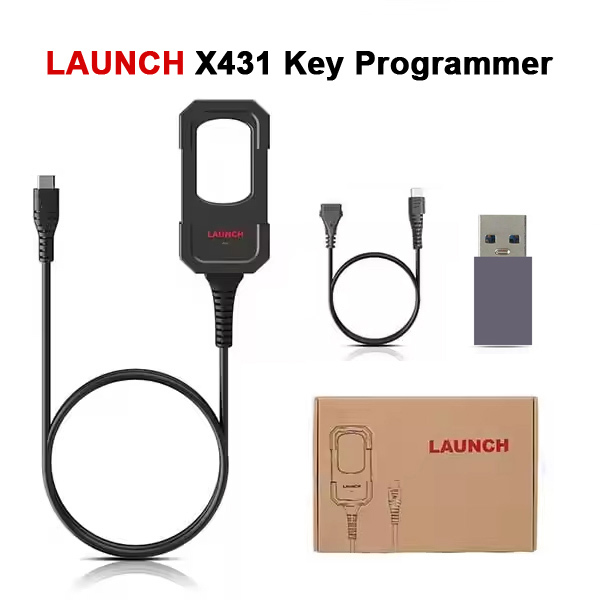

USB to TYPEC connector: device to key programmer
One click start smart key models and use LS series Nissan super remotes to generate corresponding keys. For car models with electronic chip keys or the 11/12/13/7936/7937/7947/7946 chips, use the LN series DS super remote. For models without electronic chip keys or models 46, 48, 4D/70, 83, 8A/H, G, 4E, 11/12/13/C, 42, 33, 47, 8C, and 8C, use the LE series Volkswagen and Ford super remotes.
How to Generate LE VAG and for Ford Super Remotes:
1. Enter the [Vehicle Remote] menu and select the corresponding available super remote to generate.

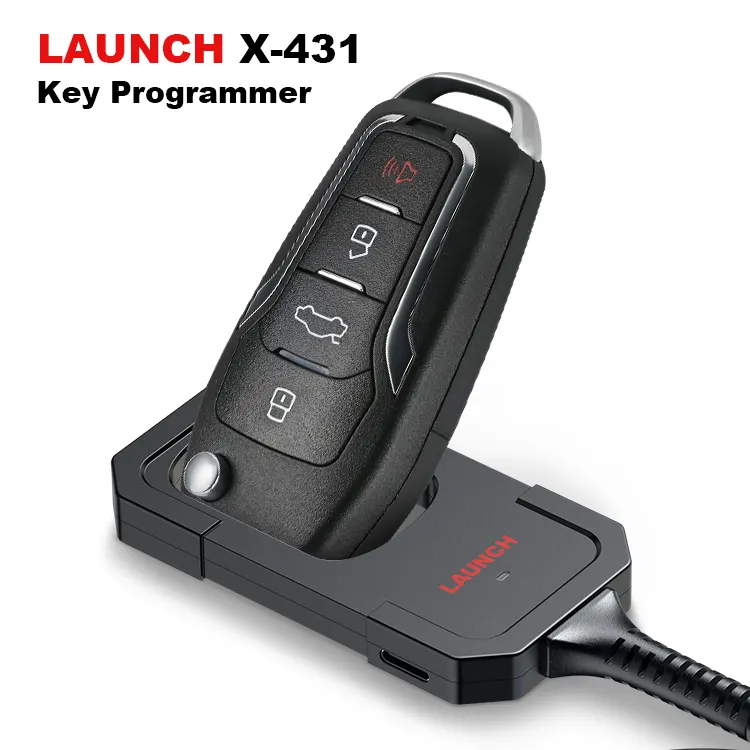

2. Select the corresponding key and place the super remote key in the key programmer to generate.
3. After the remote control is successfully generated, enter the [Set type of super chip] menu to generate the corresponding key chip.
How to Generate LS for Nissan super remote:
1. Enter the [Vehicle Remote] menu and select the corresponding smart key model to generate.
2. Place the smart remote key in the key programmer to generate.
How to Generate LN for Peugeot DS super remote:
1. Enter the [Vehicle Remote] menu and select the corresponding electronic key model to generate.
2. Place the electronic remote key in the key programmer to generate.
3. For car models without electronic keys, enter [Set type of wireless remote] to generate the corresponding key.
Specifications:
Product size: 80*40*11.2mm
Working voltage: 5V
Operating temperature: 0-50°C
Communication interface: USB
Low-frequency communication interface: 125K low-frequency transceiver
High-frequency communication interface: support 13.56M high-frequency transceiver, support 3000M-500M high-frequency signal frequency measurement
